PRODUCTS

Junction box

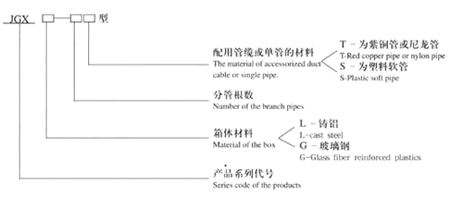

JGX□-□T Junction box

No.	Model	External dimension (mm)			Interior clearance size (mm)		Branched pipes
No.	Model	L	B	H	L1	B1	Branched pipes
1	JGXL-19T	380	200	100	410	140	19
2	JGXL-12T	290	200	100	320	140	12
3	JGXL-7T	180	200	100	210	140	7
4	JGXL-5T	180	160	80	210	/	5
5	JGXL-4T	180	160	80	210	/	4
6	JGXL-3T	180	160	80	210	/	3

JGX□-□S Junction box

No.	Model	External dimension (mm)			Interior clearance size (mm)		Branched pipes
No.	Model	L	B	H	L1	B1	Branched pipes
1	JGXL-19S	380	200	100	410	140	19
2	JGXL-12S	290	200	100	320	140	12
3	JGXL-7S	180	200	100	210	140	7
4	JGXL-5S	180	160	80	210	/	5
5	JGXL-4S	180	160	80	210	/	4
6	JGXL-3S	180	160	80	210	/	3
